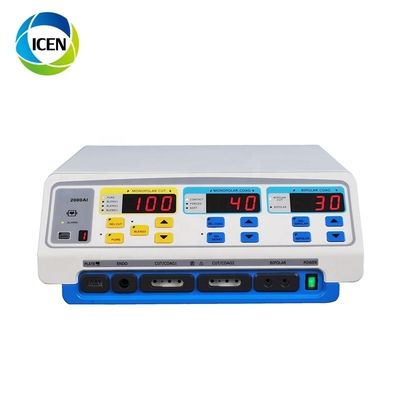

IN-I2000AI LED Medical Equipment Surgical Cautery Device Digital Electrosurgical Generator Bipolar Electrosurgical Unit
Main Features
-Max 300W Electrosurgical Generator, with mono-polar and bipolar function.
-Seven working modes: pure cut, blend1, blend2, contact coag, forced coag, bipolar coag, bipolar cut.
-Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
-Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.
-Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
-Both hand and foot controlled.
-Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
-The unit always remember the last setting when it turned off.
-Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
-The ESU unit can be connected with laparoscope and endoscope, etc.
-Protection against over-voltage and over-current.
-Defibrillation protected.
-Convection refrigeration without ventilator.
-Mounted on a 4 wheels cart(optional).
-Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications:
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Power rating: 1100VA±10%
Ralated Power output:
Function |
Working modes |
Power output (Max) |
load |
Frequency |
V-PP |
Crest Factor |
Monopolar Cut |
Pure cut |
300W |
800Ω |
416KHz |
1.1kV |
1.5 |
Blend1 |
250W |
800Ω |
1.6KV |
1.8 |
||
Blend2 |
200W |
800Ω |
1.9KV |
2.2 |
||
Monopolar Coagulation |
Spray |
80W |
800Ω |
2.5KV |
5.5 |
|
Forced |
120W |
800Ω |
960KV |
1.8 |
||
Bipolar |
Standard coag |
50W |
200Ω |
480V |
1.8 |
|
Macro-bipolar |
120W |
200Ω |
600V |
1.8 |
Packing list:
Main Unit 1set
Electrosurgical Pencil 5pcs
Electrosurgical Pad 10pcs
Electrosurgical pad cable 1pc
Footswitch 1set
Bipolar Forceps 1pc
Bipolar Forceps cable 1pc
Tip Clean Sponge 1pc
